(1) Rated loadSelect according to the maximum cargo weight × 1.2 times the safety factor (5t/10t/15t/20t/30t/50t).(2) telescopic strokeSingle depth: Shelf depth + 100 - 200mmDouble Depth: 2 × Shelf Depth + 200 - 300mm(3) Number of stages (number of stages)Single depth: Level 3; Double depth: Level 4

The new generation of heavy-duty forks has entered the era of intelligence, from "passive execution" to "autonomous perception and intelligent decision-making".Condition monitoring: built-in vibration, temperature, current, displacement, wear sensors, real-time acquisition of operating data.Predicti

(1) Long stroke with large deflection (sagging)Scheme: box type closed section, thickened panel, internal reinforcing ribs, pre-arch design, middle support wheel.Material upgrade: high-strength alloy steel (42CrMo), integral forging.(2) Telescopic jitter and large impactScheme: Servo S curve acceler

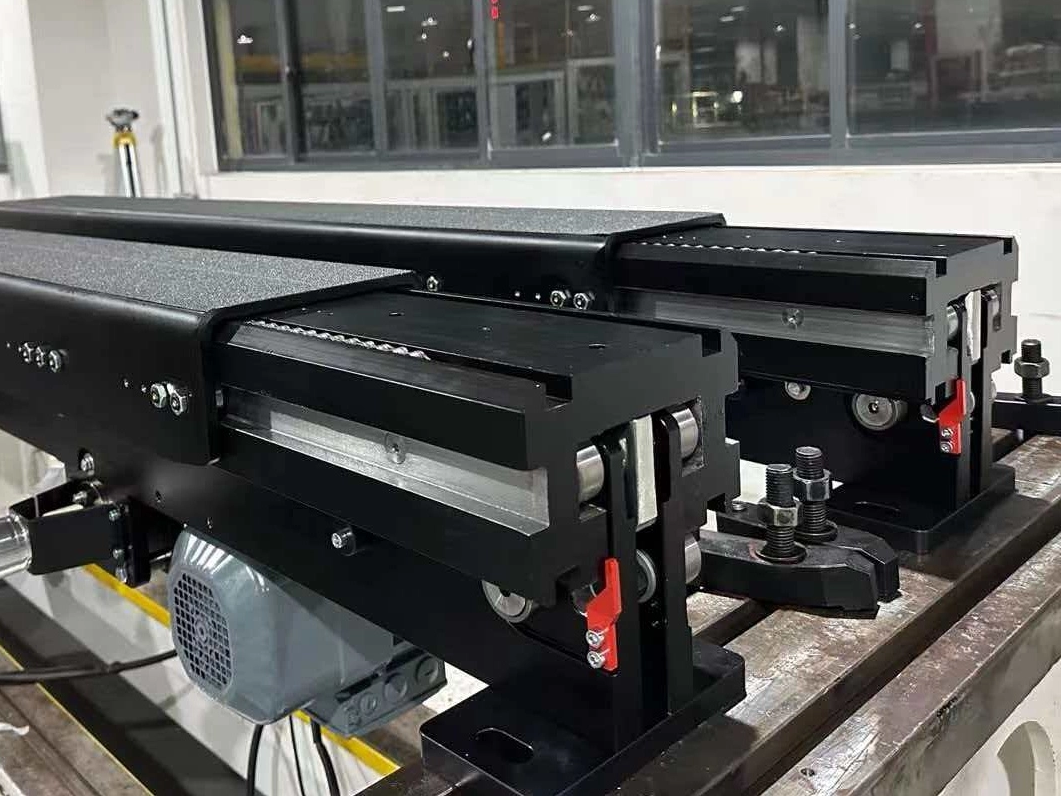

(1) Three-stage telescopic fork (single deep position)Structure: lower fork + middle fork + upper fork (3 segments)Travel distance: about 1.5 - 2.5 metersFeatures: strong rigidity, small deflection, fast speed, good stabilityApplicable: single row shelves, standard storage, heavy load and high stabi

The heavy-duty telescopic fork is the key executive mechanism of heavy-duty intelligent warehousing, which solves the problems of overweight, overlong and high-precision access.Load capacity: standard 5t - 20t, custom up to 30t/50t.Structure: two/three/four (single depth/double depth), box-type high

(1) Crawling at a low speedReasons: large static and dynamic friction difference, poor lubrication, insufficient rigiditySolution: Plastic guide rails (such as Turcite), forced lubrication, improved assembly rigidity(2) Fast wear and short lifespanReason: Soft material, no quenching, dust/iron filin
