Product Overview
It is the preferred equipment for both storage efficiency and space utilization. The product integrates core technologies such as precision transmission, precision orientation, and safety protection, and has the characteristics of stable expansion and contraction, accurate positioning, strong load bearing, and convenient operation. It is widely used in various types of intelligent warehousing, logistics distribution centers, and industrial automation production lines. It is suitable for storage equipment such as stackers and smart shuttles. It can customize the load, stroke, and installation size according to the actual needs of customers, providing efficient and reliable cargo transfer solutions for medium and high-density warehousing scenarios, helping enterprises reduce warehousing operation costs and improve the level of operation intelligence.
Core Advantage
Double deep access, space utilization is greatly improved: the use of two-section telescopic structure design allows deep double-layer deep shelf access to goods, breaking through the travel limit of single deep fork, without the need to increase the number of shelves, the storage capacity can be doubled, especially suitable for warehousing scenarios with high land costs and the pursuit of high-density storage. Compared with traditional single deep fork, it can effectively increase the storage capacity per unit area of the warehouse, help enterprises optimize the storage layout, and reduce infrastructure and operating costs.
The transmission is stable and the operation is efficient and smooth: the rack and pinion precision transmission structure is adopted to replace the traditional chain transmission, with high transmission efficiency, no card, no loosening, and with precision guide rollers and sliders, the telescopic process is smooth and noise-free, and the no-load telescopic speed can reach 40m/min. It can still maintain stable operation under heavy load, enabling fast and accurate cargo access operations, greatly improving the efficiency of warehousing operations, and adapting to the needs of medium and high-frequency warehousing turnover.
Strong load, wear-resistant and durable: The fork body is made of 42CrMo high-strength alloy steel. After overall quenching, high-frequency quenching, precision tempering and secondary forging treatment, the hardness can reach HRC58-62, and the resistance to deformation, wear and corrosion is excellent. The rated load can cover 500-1500kg, which can withstand medium and heavy loads for a long time. The deflection of the fork body is controlled within a reasonable range, and the core components have a long service life, which greatly reduces the frequency and cost of equipment maintenance.
Flexible customization and wide adaptability: Relying on professional R & D and processing teams, we can customize dual deep-position telescopic forks with different strokes (1800mm-3500mm), different loads, and different installation sizes according to customer storage equipment parameters and working conditions. It supports single-extension and double-extension flexible adaptation. It can be adapted to special working conditions such as high temperature, low temperature, dust-free, and humidity. With suitable limit switches, encoders, and other components, it perfectly matches all kinds of stackers and intelligent shuttles to meet the needs of diverse warehousing operations.
Safe and reliable, easy to maintain: Equipped with a complete safety protection system, equipped with torque limiter, overload protection, limit switch, anti-fork device and other components, it can effectively prevent overload operation, excessive telescopic, goods falling off and other safety hazards, and comprehensively ensure the safety of warehousing operations; the product adopts modular design, easy installation and disassembly, daily maintenance does not require complicated operations, and the core components are selected from high-quality brands, which can be automatically linked through the PLC control system to reduce manual intervention and improve operation safety and convenience.
Applicable Scenario
It is widely used in automated three-dimensional warehouses, intelligent logistics distribution centers, industrial automated production lines, medium and high-density warehouses, etc. It is especially suitable for warehouses with moderate turnover frequency and the pursuit of space utilization, such as food and beverage warehouses, electronic warehouses, pharmaceutical warehouses, new energy warehouses, large logistics transit centers, etc. It can be used as the core execution component of stackers and intelligent shuttles to undertake the tasks of cargo access, transfer, and transshipment of double-layer deep shelves, adapting to standard pallets such as 1200mm × 1000mm and 1200mm × 1200mm, as well as various small and medium-sized materials, to help enterprises achieve efficient, intelligent, and intensive storage operations.
Product Features

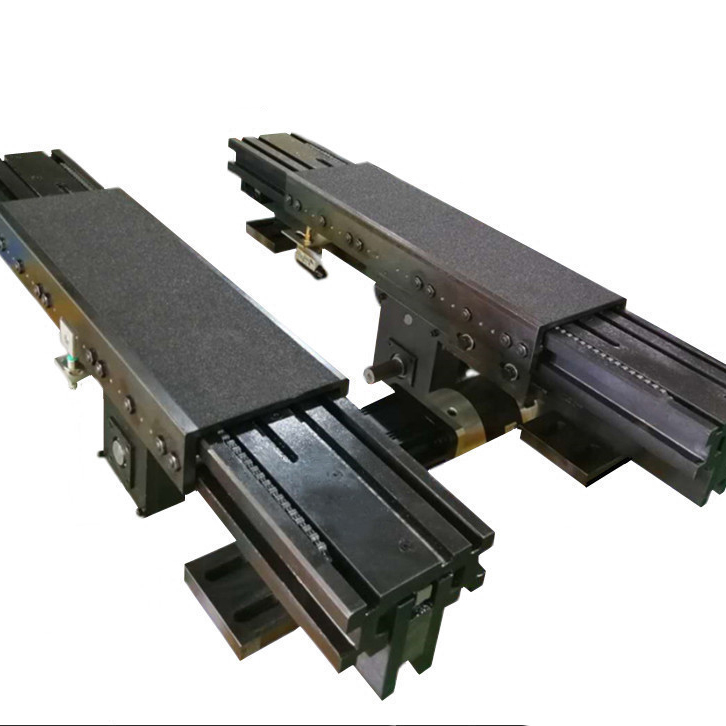

1. Structural design: two telescopic superimposed structure, using rack and pinion precision transmission, with guide rollers and sliders, stable expansion and contraction, outstanding double deep access capacity;
2. Material process: 42CrMo high-strength alloy steel, quenched, forged, precision grinding treatment, wear resistance, corrosion resistance, anti-deformation, excellent load-bearing performance;
3. Accuracy parameters: positioning accuracy ± 2mm, no-load expansion speed ≤ 40m/min, rated load 500-1500kg;
4. Specification customization: stroke 1800mm-3500mm, support single extension, double extension structure, can be customized according to the needs of installation size and load;
5. Safety configuration: equipped with torque limiter, overload protection, limit switch, anti-fork and other components, comprehensive safety protection;
6. Adaptation scene: can be matched with stacker, intelligent shuttle, suitable for room temperature, high and low temperature, dust-free and other working conditions, suitable for medium and high density storage scene.
