Core parameters and definitions
Load capacity: 50 - 300kg (standard), custom up to 500kg
Structural form: two-stage/three-section (single extension/double extension), single column/double column
Common materials: high-strength aluminum alloy, lightweight carbon steel, 42CrMo
Transmission mode: rack and pinion, timing belt, light load chain
Telescopic stroke: 0.5 - 1.5m (common)
Speed: 0.5 - 1m/s
Positioning accuracy: ± 0.5 - ± 2mm (servo control)

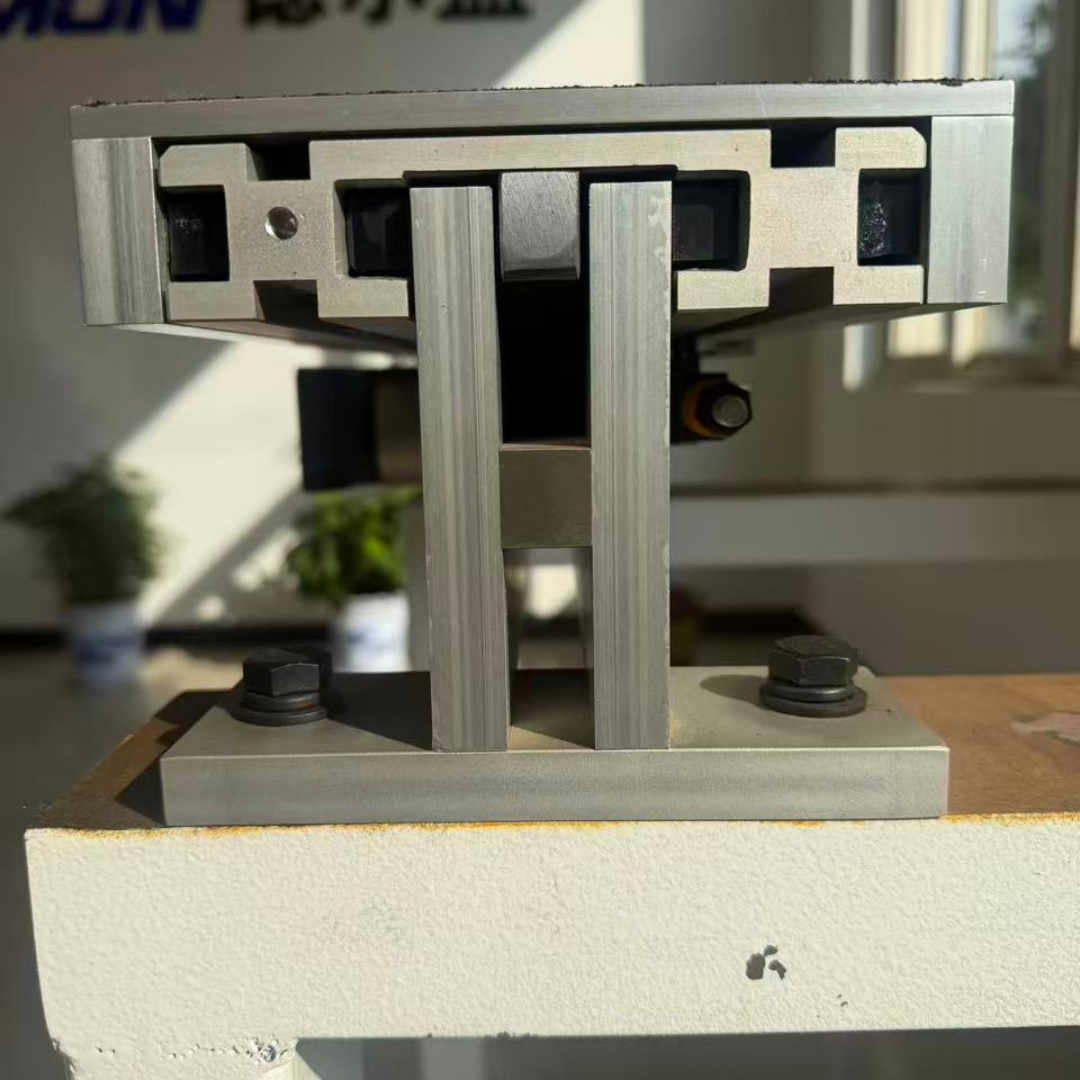

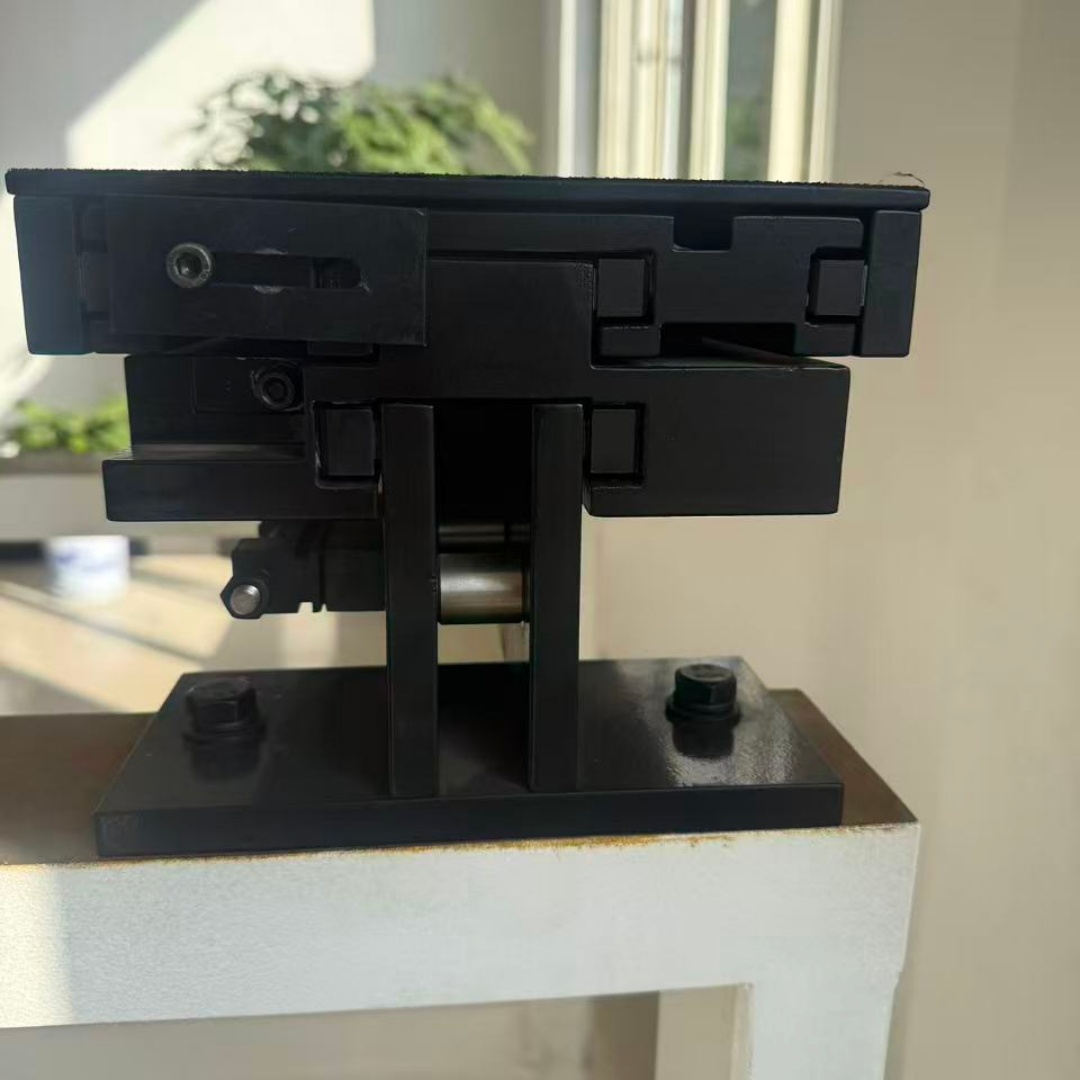

II. Structure and characteristics
Compact structure, light weight: small size, suitable for narrow lanes, small three-dimensional storage
Fast speed, low noise and smooth operation
Simple maintenance and low cost
Strong adaptability: can be equipped with servo/stepper motor, support PLC, bus control
Customizable: length, stroke, load, material (stainless steel/clean/low temperature)
III. Typical application scenarios
E-commerce/express small sorting, material box/carton handling
Electronics/precision manufacturing: PCB, material box, parts, small tooling
Pharmaceutical/laboratory: clean room, low temperature cold storage (-20 ℃)
New energy: small batteries, cells, modules
AGV/light stacker/three-dimensional warehouse/production line loading and unloading
IV. Selection points
1.Rated load: selected according to the maximum workpiece weight (with safety factor)
2.Travel and depth: fork fully extended length ≥ depth of storage location
3.Installation space: width, height, mounting hole match
4.Speed/beat/accuracy: high frequency timing belt/rack and pinion
5.Environment: room temperature/low temperature/clean/anti-corrosion
Fifth, the difference between medium and heavy loads
Lightweight: ≤ 300kg, aluminum alloy/light steel structure, timing belt/rack and pinion, fast speed, high precision, low cost
Medium and heavy load: ≥ 500kg - several tons, thick steel plate/cast steel, heavy load chain, large motor, high rigidity, high stability
