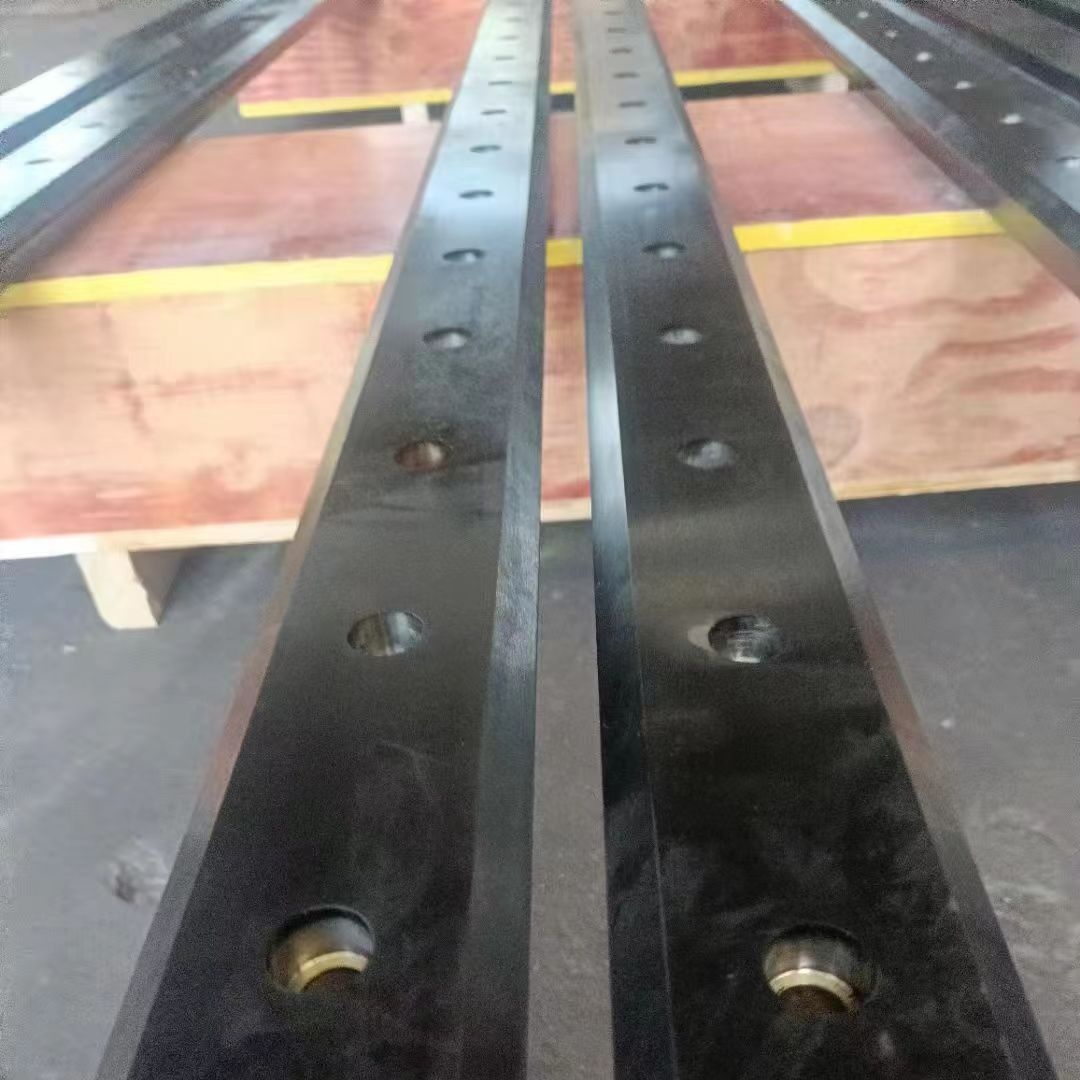

Structure and section

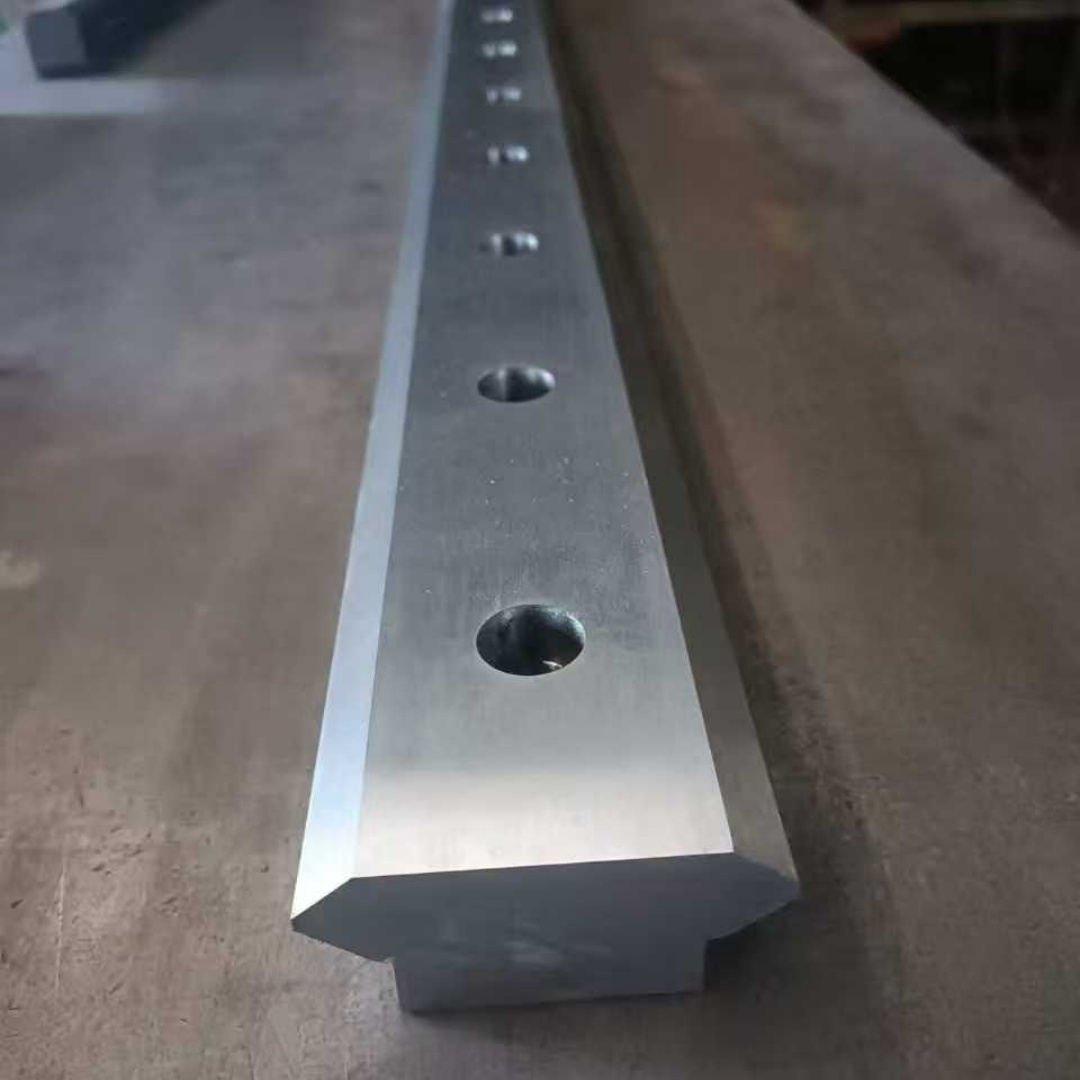

Cross section: narrow top and wide T shape, top guide surface, bottom wide support surface, guide edges on both sides
type
T-shaped guide: convex T on the bed, concave T on the slide
Inverted T-shaped guide rail: concave T on the bed body, convex T on the sliding table (commonly used for heavy loads)
T-slot guide: working surface with T-slot, T-bolt can fix workpiece/fixture
Materials and processes
Cast iron: HT250/HT300 gray cast iron, QT500/QT600 ductile iron (good vibration absorption, low cost)
Inlaid steel rail: 45 steel/GCr15/CrWMn hardened (HRC58 - 62), extremely wear-resistant
Heat treatment: surface quenching, intermediate frequency quenching, quenching and tempering, stress relief aging
Machining: milling/grinding/scraping, flatness ≤ 0.005mm/m, groove tolerance ± 0.01mm
III. Core features
Ultra-high rigidity: T-shaped cross-section flexural/torsional strength, no deformation under heavy load
Heavy load capacity: 5 - 50t single load, suitable for heavy cutting/large workpieces
Anti-overturning: wide bottom support, small rollover moment, high stability
Good damping: excellent damping of cast iron, cutting vibration reduction, smooth processing surface
Easy to fix: T-slot can be quickly clamped, suitable for tooling/fixtures
Disadvantages: High friction (μ = 0.05 - 0.15), easy to crawl at low speeds, limited speed
IV. Performance parameters
Load capacity: 5 - 50t (higher customization)
Straightness: precision grade ≤ 0.005mm/m, ordinary ≤ 0.02mm/m
Surface hardness: cast iron HB180 - 240; inlaid steel HRC55 - 62
Coefficient of friction: 0.05 - 0.15 (sliding); Plastic 0.03 - 0.05
Adaptation speed: ≤ 10m/min (heavy load); ≤ 20m/min (light load)
V. Typical applications
Heavy machine tools: gantry milling/planing, floor boring, vertical lathe, heavy machining center
Workbench: T-slot workbench, assembly platform, welding tooling
Large equipment: presses, injection molding machines, metallurgical equipment, wind power equipment
Ground guide: heavy-duty conveyor line, stacker, heavy-duty AGV
Six, selection points
Load: 5t/10t/20t/30t + → Select section size and material
Accuracy: precision (≤ 0.005mm/m) scraping/grinding; ordinary milling
Speed: choose T-shaped for low speed and heavy load; choose rolling guide for high speed
Environment: high temperature/dust choose cast iron/inlaid steel; clean choose stainless steel/coating
Fixed: need to clamp and select T-shaped groove; pure guide light selection T-shaped

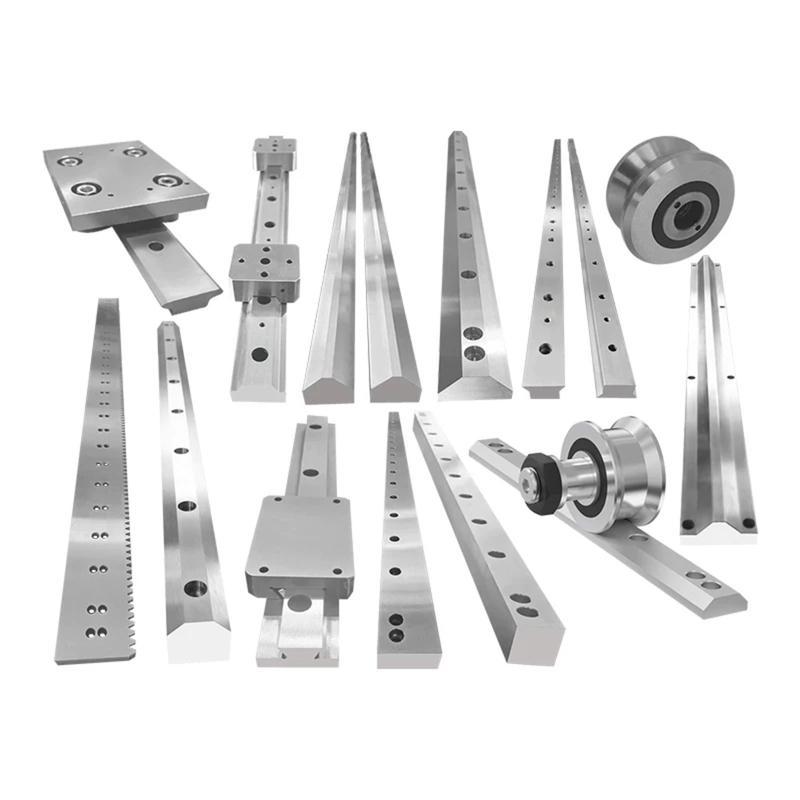

Seven, compare with other guides
VS rectangular guide rail: T-shaped stronger anti-overturning, more stable guide, easy installation and positioning; larger rectangular bearing surface
VS dovetail guide: T-shaped rigidity/stronger heavy load, simple processing; adjustable dovetail clearance, suitable for mobile workbench

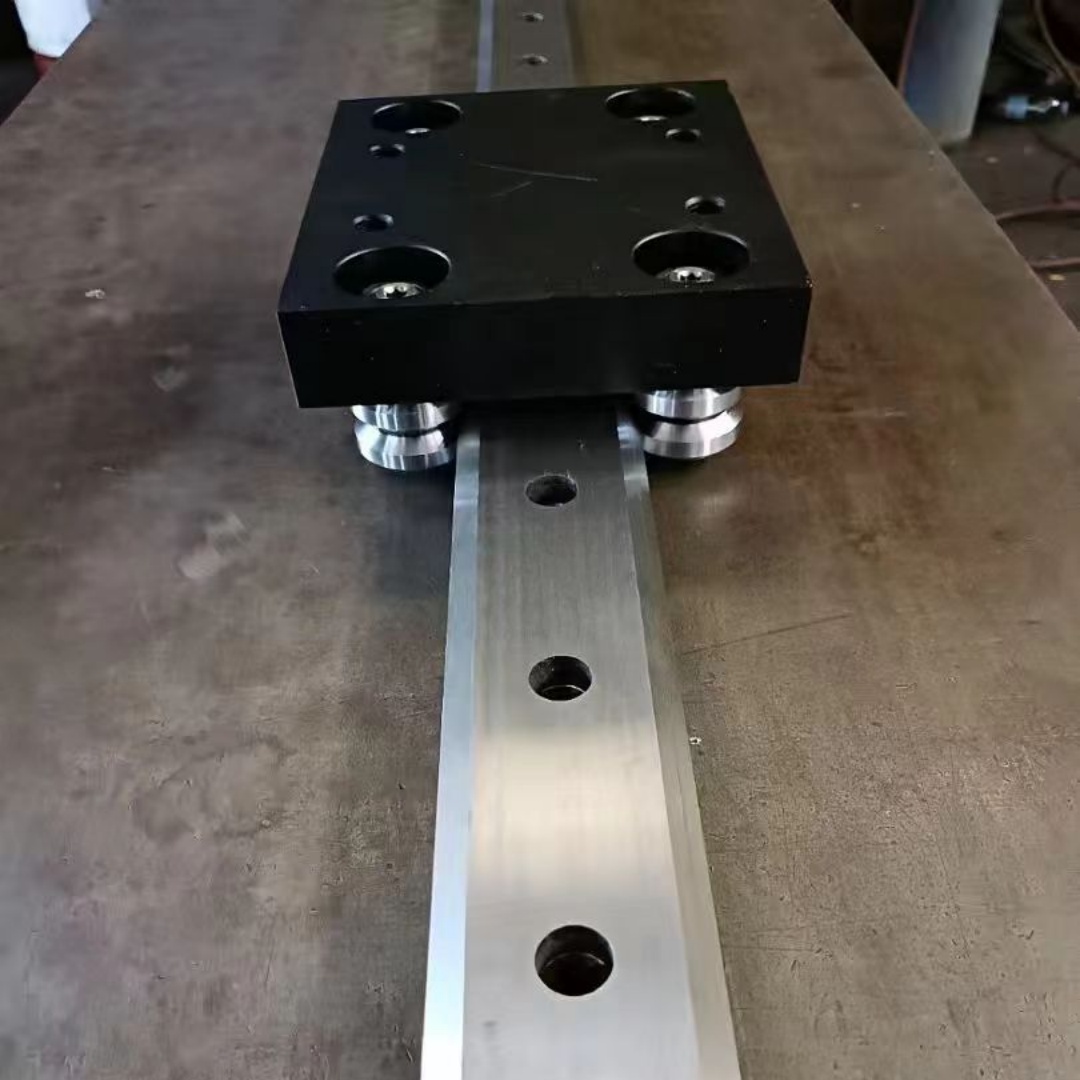

VS rolling guide: T-shaped rigidity/anti-vibration/heavy load far superior; low rolling friction, high speed and high precision
