It is the preferred equipment for high-density warehousing scenarios. The product integrates precision machinery, transmission technology, and guidance technology, and is characterized by stable expansion and contraction, accurate positioning, and strong load bearing. It is widely used in various automated three-dimensional warehouses, intelligent logistics distribution centers, and is suitable for telescopic fork matching, stacker operation, and other scenarios. It can be customized according to the actual needs of customers to meet different load, stroke, and installation size requirements, providing efficient and reliable cargo transfer solutions for high-density warehousing.

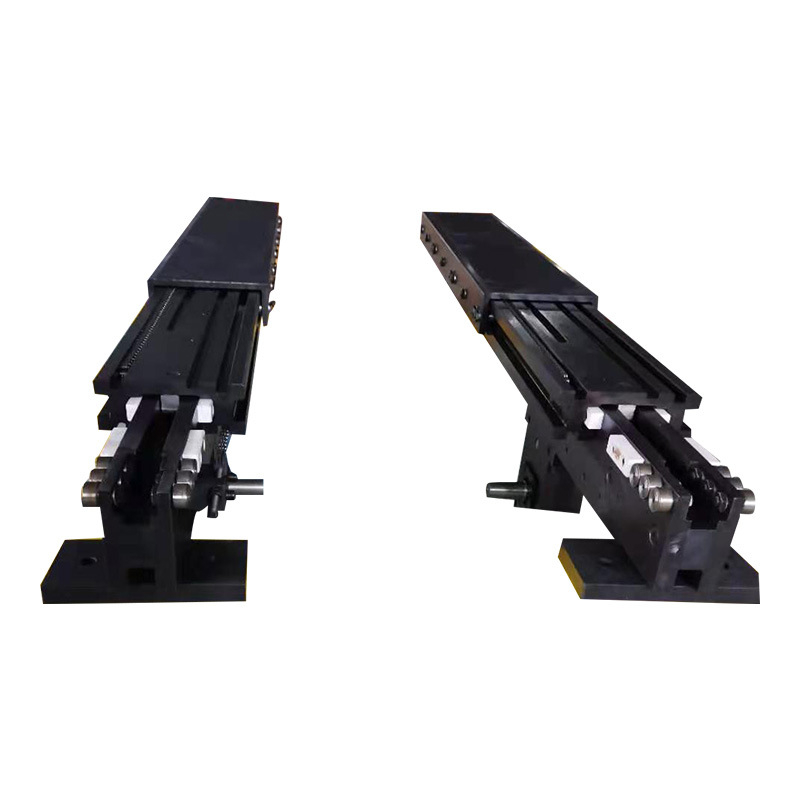

Core structure (three-stage expansion)
Deep access, double space utilization: The three-section telescopic structure design can penetrate three-layer deep shelves to access goods, break through the travel limit of double deep forks, and effectively improve the storage density of warehouses. It is especially suitable for warehousing scenarios with high land costs and the pursuit of extreme storage capacity utilization. Compared with traditional forks, it can greatly increase the storage capacity per unit area of warehouses and help enterprises reduce warehousing operation costs.

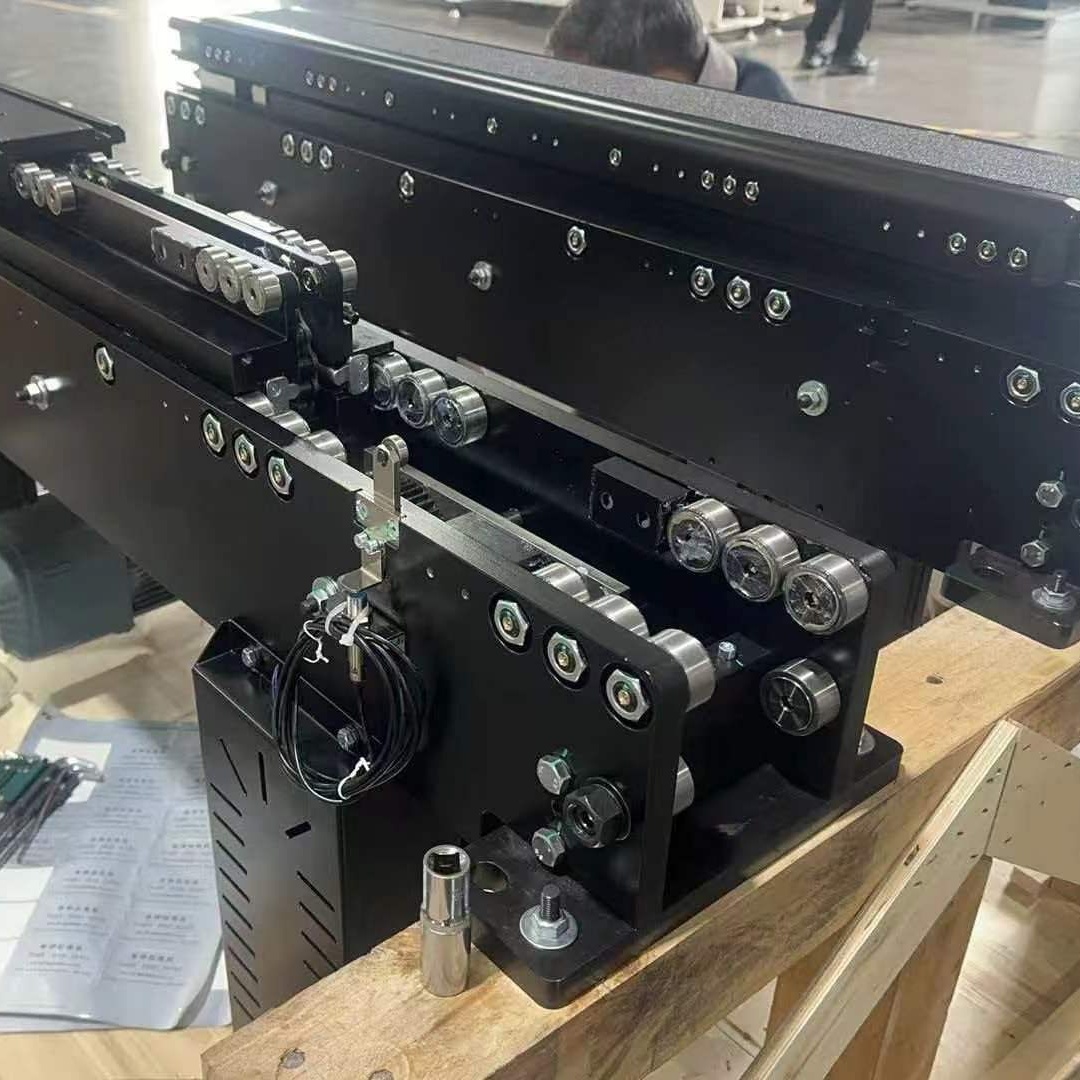

Accurate transmission, smooth and efficient operation: using a rack and pinion transmission structure (instead of traditional chain transmission), the transmission efficiency is higher and the stability is stronger. With precision guide rollers and guide sliders, the telescopic process has no card, no deviation, positioning accuracy up to ± 2-3mm, and no-load speed up to 45m/min, which can achieve high-speed and accurate reciprocating telescopic operations and improve the efficiency of warehousing operations.
Strong load, wear-resistant and durable: The fork body is made of high-strength alloy steel such as 42CrMo, which has undergone overall quenching, high-frequency quenching and precision tempering treatment, and the hardness can reach HRC58-62. The fork body is strengthened by secondary forging, and the anti-deformation, anti-wear and anti-corrosion capabilities are outstanding. The rated load can reach 1200kg. The deflection control is reasonable when running at full load, and it can withstand high-intensity operations for a long time, greatly prolonging the service life of the product and reducing equipment maintenance costs.
Flexible customization and wide adaptability: Relying on professional R & D and processing teams, three-position telescopic forks with different specifications, travel, and loads can be customized according to customer needs. The standard length can cover 1300mm-1600mm, and the travel can be customized 3000mm-3700mm. At the same time, it can be adapted to special working conditions such as high temperature, low temperature, and dust-free. With suitable limit switches, encoders, and other components, it can perfectly match various types of stackers and automated three-dimensional warehouse equipment to solve the needs of cargo transfer in special scenarios.
Safe and reliable, easy to maintain: Equipped with a complete safety protection system, equipped with limit switches, torque limiters and other components, it can effectively prevent problems such as excessive expansion and overload operation, reduce the risk of operation collision, and improve the safety of warehousing operations; the product structure design is simple, easy to install and disassemble, daily maintenance does not require complicated operations, and the core components are selected from international well-known brands to ensure that the main product life can reach more than 10 years and is easy to maintain.
Applicable Scenario

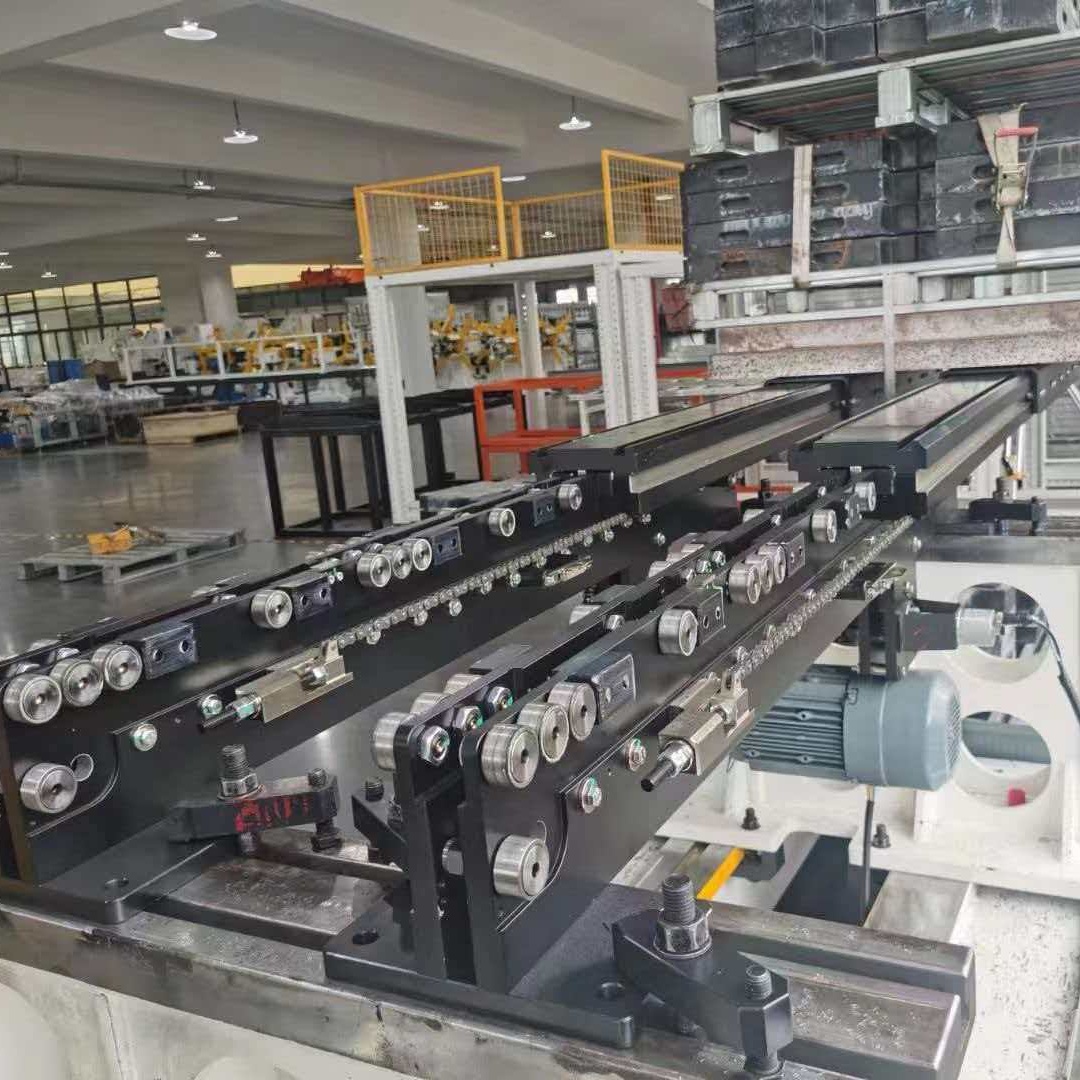

It is widely used in automated three-dimensional warehouses, intelligent logistics distribution centers, industrial automation production lines, and other fields, especially for warehouses with moderate turnover frequency and the pursuit of extreme storage capacity utilization, such as raw material warehouses, cold chain warehouses, food and beverage warehouses, electronic warehouses, new energy exchange stations, etc. It can be used as the core executive component of the stacker, to undertake the task of cargo access and transfer of three-layer deep shelves, and to adapt to standard pallets such as 1200mm × 1000mm and 1200mm × 1200mm, to meet the high-efficiency transfer requirements of various materials, and to help enterprises achieve intelligent and efficient storage operations.
Product Features
1. Structure: three-section telescopic superposition design, using rack and pinion transmission, with guide rollers and guide sliders, stable telescopic, outstanding deep access ability;
2. Material: high-strength alloy steel, after quenching, forging treatment, wear resistance, corrosion resistance, anti-deformation, excellent load-bearing performance;
3. Precision: precision grinding, high positioning accuracy, small guiding error, can achieve accurate cargo positioning and load transfer;
4. Specifications: standard length 1300mm-1600mm, stroke 3000mm-3700mm, rated load up to 1200kg, support full-specification non-standard customization;
5. Safety: equipped with safety components such as limit switches and torque limiters to prevent overload, excessive expansion and contraction, and improve job safety;
6. Adaptation: It can be used with various stackers and automated storage equipment, and is suitable for various working conditions such as room temperature, high and low temperature, and dust-free.
